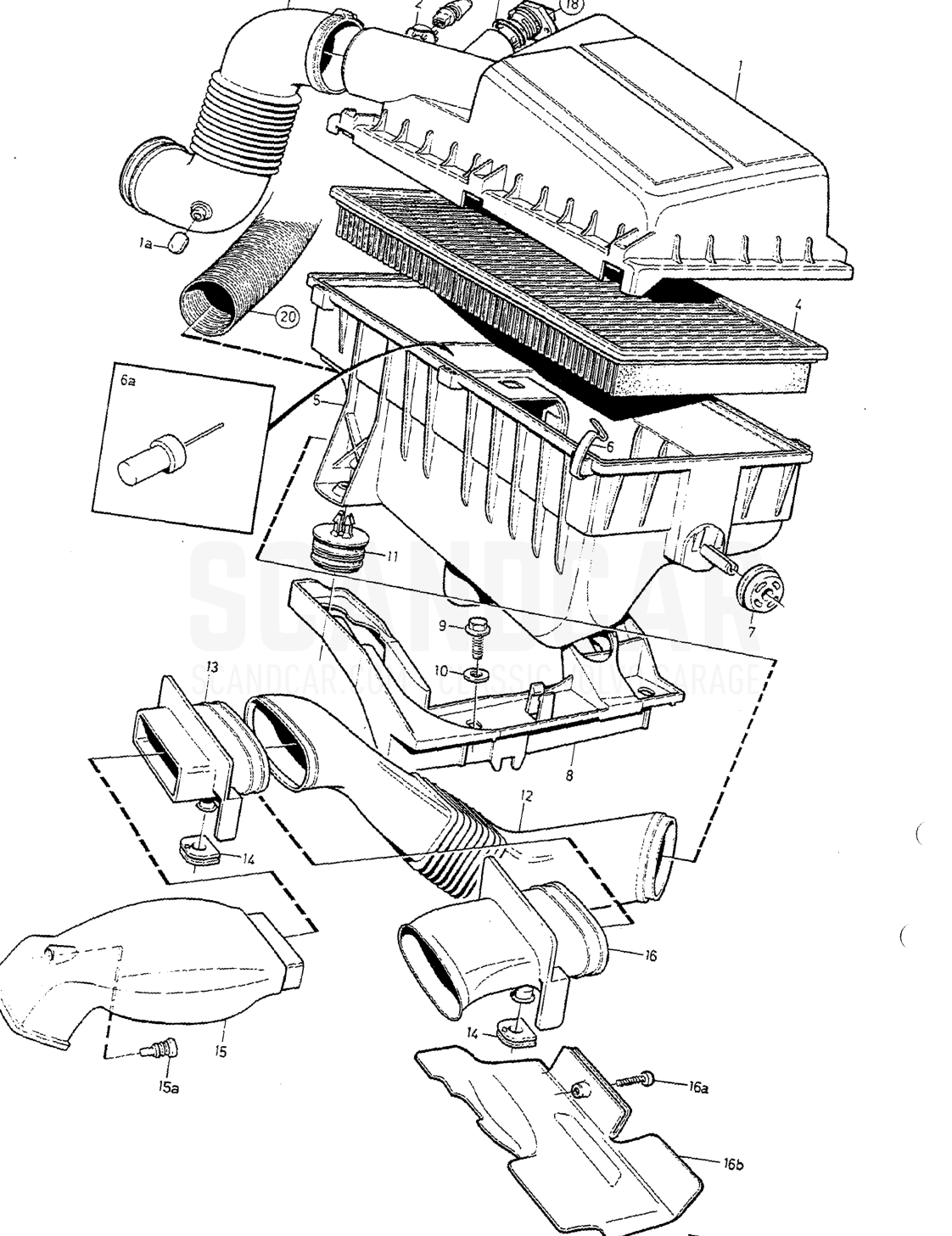

Drawing - 850-series

🔍 Vergroten
Fitment key
A = TURBO MAN.TRANS B = TURBO AUTO.TRANS C = W/0 TURBO MAN.TRANS D = W/0 TURBO AUTO.TRANS

Parts

# Part Price
1 9202136
9202136
Fits: W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
1 1 lnlet manifold Inloppsrör 4
inlet pipe
1275959
Fits: TURBO MAN.TRANS, TURBO AUTO.TRANS, E
1 1 lnlet manifold Inloppsrör 5
 362,48 €
2 Spina Volvo, pezzo Volvo nr 1271969
1271969
Fits: E
1 1 1 1 Plug Plugg 3
 5,80 €
3 nipple
1276445
Fits: W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
1 1 Nipple Nippel 3
 11,97 €
3a Volvo Tappo Tubo di aspirazione Raccordo Volvo 960 - S90 Volvo ricambi no 1346125
1346125
Fits: W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
1 1 Plug Plugg 2
 4,85 €
3b Volvo Service set Volvo onderdeel nr 271778
271778
Fits: W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
1 1 Service kit Servicesats 3
 16,91 €
4 Volvo nippel Volvo onderdeel nr 3536035
3536035
Fits: E
1 1 1 1 Nipple Nippel 3
 23,81 €
4a Gomito del collettore di aspirazione Volvo 240 260 740 850 940 C70 S60 S70 V70 V70 XC oa tubo di aspirazione, pezzo Volvo nr 947681
947681
Fits: E
1 1 1 1 Elbow nipple Vinkelnippel 2
 10,50 €
5 Volvo guarnizione collettore V70 C70 S80 850 S70 Xc70 Volvo ricambi no 9146266_B
9146266
Fits: E
1 1 1 1 Gasket Packning 1
 3,38 €
6 968159
968159
Fits: E
7 7 7 7 Flange screw Flänsskruv 3
7 3528404
3528404
Fits: E
1 1 1 1 Stay Stag 4
8 946173
946173
Fits: E
2 2 2 2 Flange screw Flänsskruv 2
9 8111
8111
Fits: E
1 1 1 1 0-ring 0-ring 2
10 Raccordo, collettore di aspirazione Volvo 850, C70 (-2005), S70, V70 (-2000)
6842446
Fits: E
1 1 1 1 Nipple Nippel 4
 6,03 €
11 948746
948746
Fits: E
1 1 1 1 Flange screw Flänsskruv 2
12 Volvo Tappo Tubo di aspirazione Raccordo Volvo 960 - S90 Volvo ricambi no 1346125
1346125
Fits: E
3 3 3 3 Plug Plugg 2
 4,85 €
13 Volvo Guarnizione corpo farfallato Volvo 850 900 C70 (-2 Volvo ricambi no 9135990
9135990
Fits: E
1 1 1 1 Gasket Packning 3
 5,24 €
14 Corpo farfallato Volvo, pezzo Volvo nr 1271893
1271893
Fits: TURBO AUTO.TRANS, W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
1 Throttle housing Spjällhus 3
 301,42 €
Casa della valvola del gas Volvo, pezzo Volvo nr 1271892
1271892
Fits: TURBO MAN.TRANS, W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
1 Throttle housing Spjällhus B5234T,B5254T 3
 301,42 €
klepbehuizing
1275227
Fits: TURBO MAN.TRANS, W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
1 Throttle housing Spjällhus B5204T 3
 247,17 €
klepbehuizing
1271885
Fits: TURBO MAN.TRANS, TURBO AUTO.TRANS, W/0 TURBO AUTO.TRANS, E
1 Throttle housing Spjällhus 3
 357,31 €
klepbehuizing
1271882
Fits: TURBO MAN.TRANS, TURBO AUTO.TRANS, W/0 TURBO MAN.TRANS, E
1 Throttle housing Spjäll hus 3
 311,68 €
14a Sensore di Posizione Farfalla Volvo, Parte Volvo nr 1336385
1336385
Fits: E
1 1 1 1 Potentiometer Potentiometer 3
 17,27 €
14b 14b
959174
Fits: E
2 2 2 2 Hex socket screw I nsexskruv 2
15 948356
948356
Fits: E
4 4 4 4 Flange screw Flänsskruv 2
16 Volvo Portagomma Volvo 240 - 740 - 760 - 780 - 850 - 940 Volvo ricambi no 1389574
1389574
Fits: W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
1 1 Connector Anslutning 2
 12,64 €
17 946233
946233
Fits: W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
X X Plastic pipe by the meter Plaströr metervara LG 420 mm 2
18 Volvo Tubo di aspirazione 4mm int 9 2mm out al metro 240 Volvo ricambi no 976734
976734
Fits: W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
X X Hose by the meter Slang metervara LG 40 mm 2
 18,25 €
19 946233
946233
Fits: W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
X X Plastic pipe by the meter Plaströr metervara L.H.D LG 1750 mm 2
946233
946233
Fits: W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
X X Plastic pipe by the meter Plaströr metervara R.H.D LG 3150 mm 2
20 6842184
6842184
Fits: W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
3 3 Clip Clips 1
21 3528055
3528055
Fits: W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
4 4 Spacer tube Distansrör L.H.D 5
3528055
3528055
Fits: W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
2 2 Spacer tube Distansrör R.H.D 5
22 3515028
3515028
Fits: W/0 TURBO MAN.TRANS, W/0 TURBO AUTO.TRANS, E
1 1 Strip clamp Bandklamma 2
1100
1100
Edition 2-1998
